MiniSteam 1-3 Galloway Casting Set

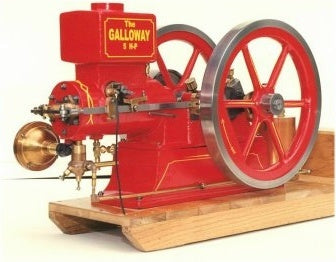

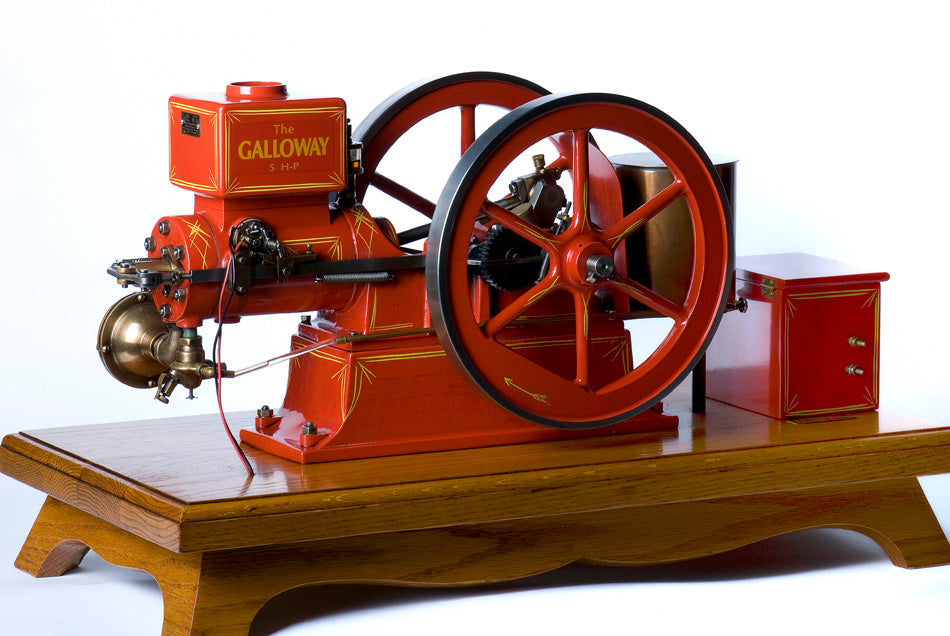

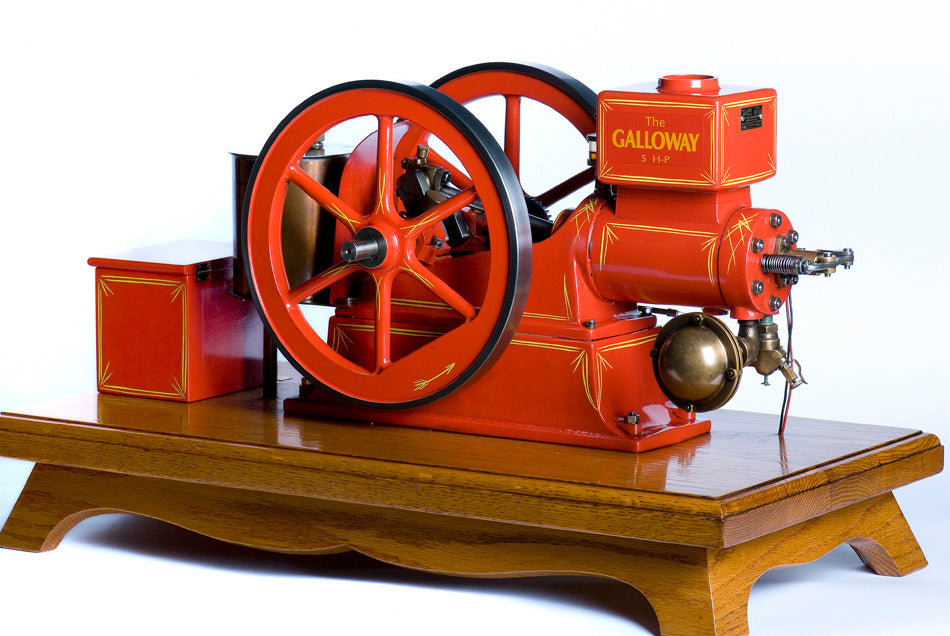

Galloway - 1/3 Scale of 5 HP Hit and Miss Engine

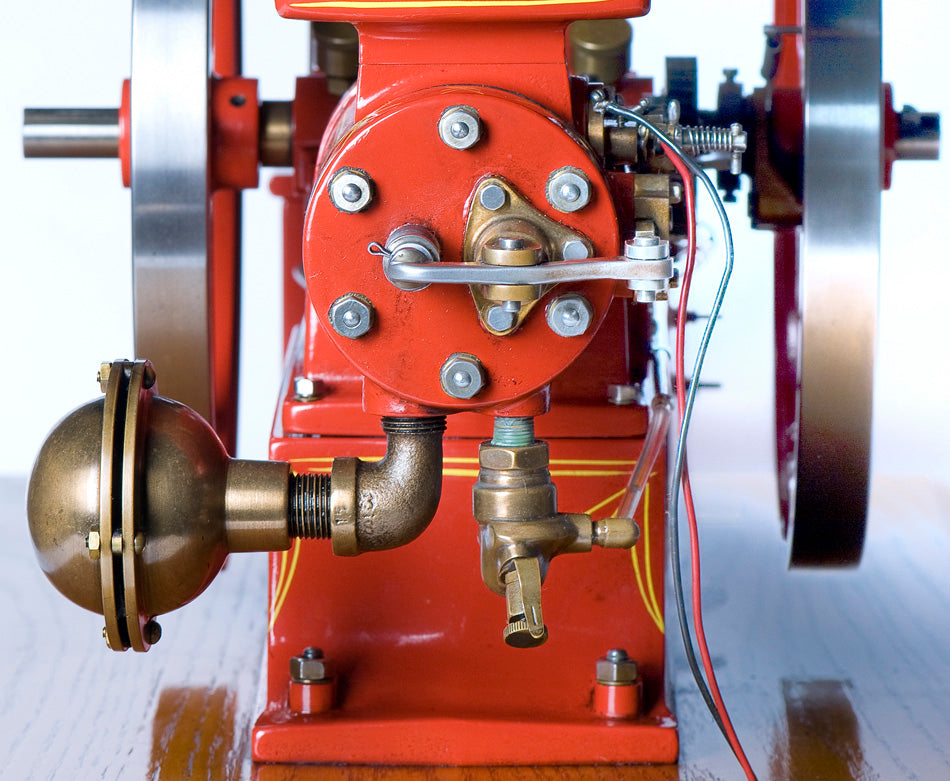

Gallway Water Cooled 1/3 Scale Model Hit and Miss Engine Casting Kit

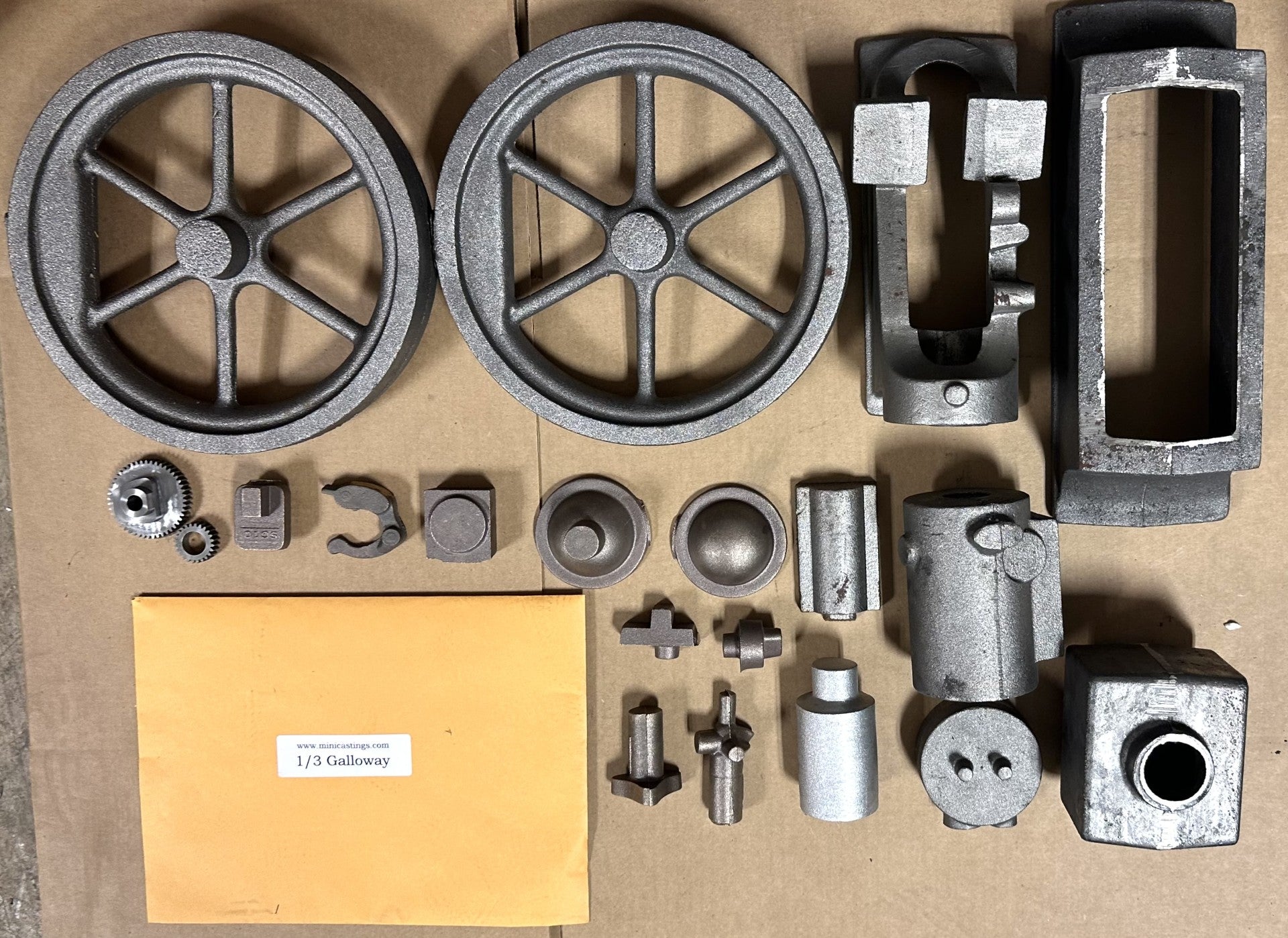

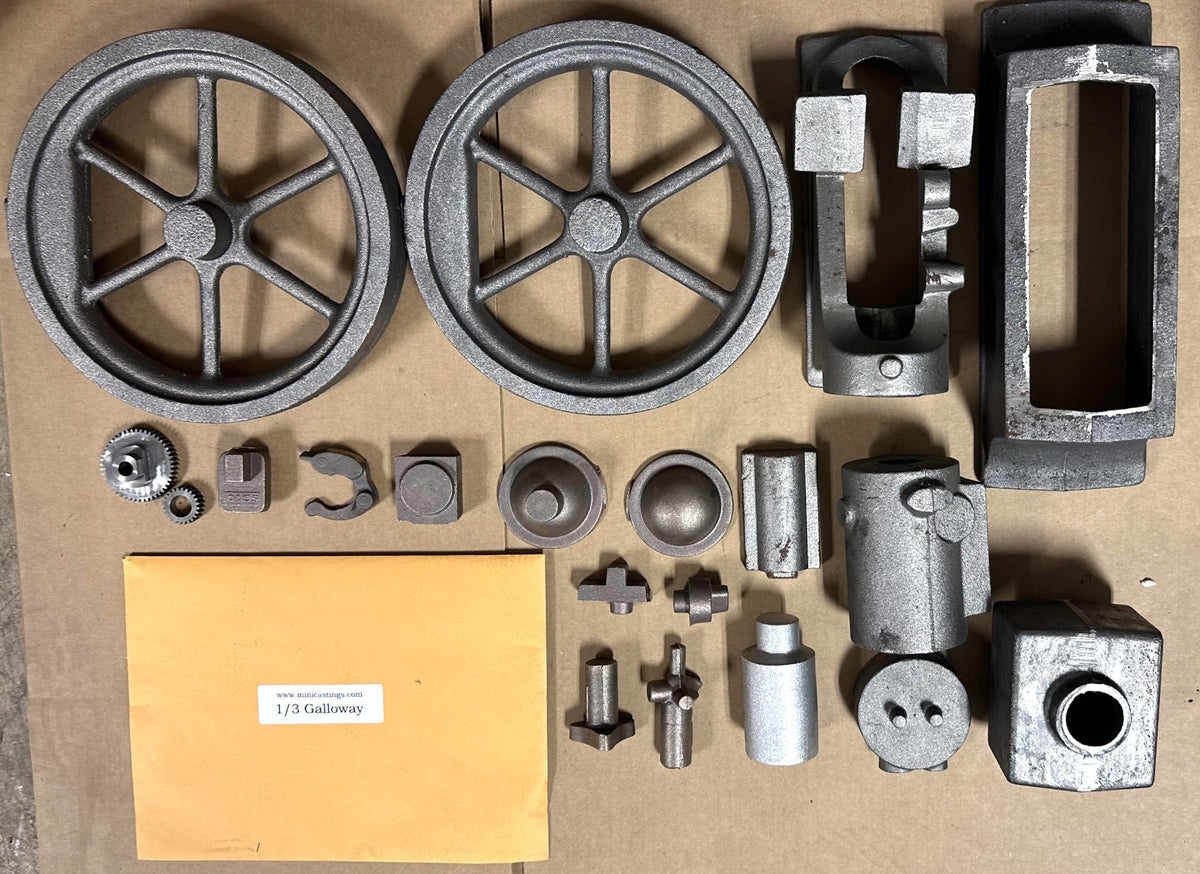

Kit Contains:

Cast Iron Castings (8)
2 flywheels, base, bearing caps, cylinder, cylinder sleeve, head, and water hopper

Bronze Castings (9)

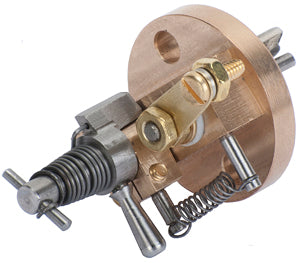

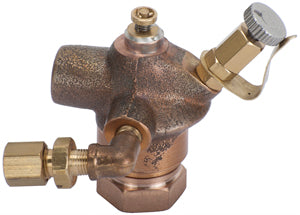

Conn. rod block, igniter, igniter trip, push rod brackets, governor bracket, carburetor, rocker arm bracket, muffler top and bottom

Aluminum Castings (1)
Piston

Detailed Blueprints (7) 17" x 22", Set of Gears (Exact width, bore, and one with shallow keyway)

Optional Cast Iron: Sub-base is now included!

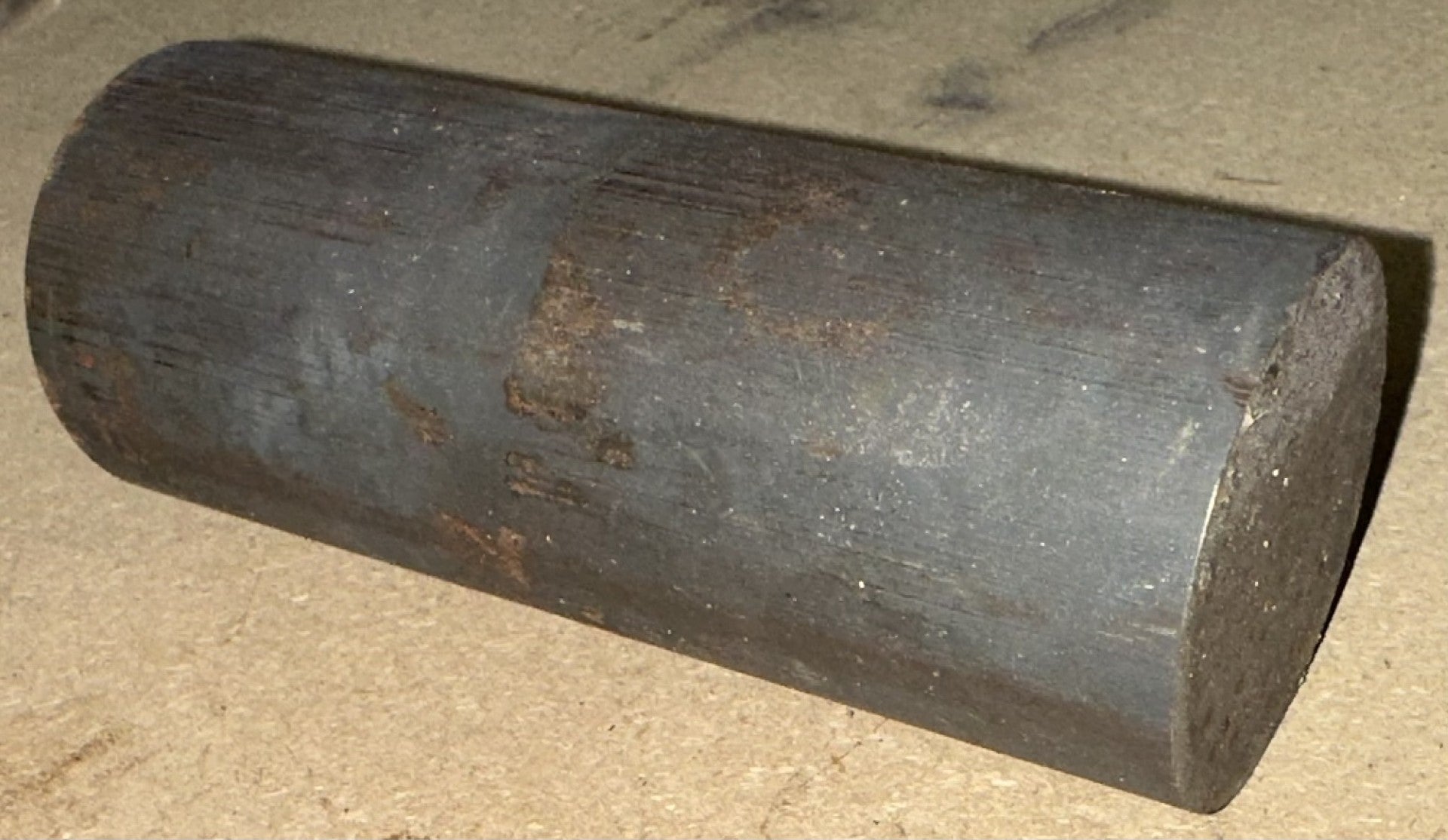

Durabar Cast Iron Cylinder Sleeve is sold separately - It is easily sourced and saves a lot of weight in shipping cost.

Galloway Model Specifications:
Flywheels - 10.200 inch
Bore Diameter - 1.750 inch
Stroke - 3.375 inch

These kits are castings that must be machined.

Shipping weight 80 lbs. Galloway Paint: Dulux 93-066-H Red

NOTE: WE HAVE RE-DRAWN THE PLANS TO THIS ENGINE IN AUTO CADE. WE HAVE CORRECTED ALL MISTAKES THAT WERE PREVIOUSLY FOUND IN THE ORIGINAL SHELLY DRAWINGS.
